XRayXL — Demo

Ten workbooks that tour XRayXL a feature at a time. Each one tells you, on the sheet, what to press and what to look for in the trace. This page walks through the same tour with real rows from a real run.

64-bit Excel required. XRayXL traces 64-bit Excel only.

What's in here

dist/
  demo/
    01_FirstTrace.xlsm      - VBA and XLL functions in one recalculation, and how to read a row.
    02_Values.xlsm          - Ranges, arrays, Variants and their types.
    03_Callers.xlsm         - What started each call: a cell, an array formula, an event, a button, a timer.
    04_Errors.xlsm          - How calls end: threw, unwound, handled and unhandled, and error values.
    05_VBACurves.xlsm       - A real VBA model, a yield-curve bootstrap, traced end to end.
    06_Objects.xlsm         - A class module's members, and a Range, Worksheet and Workbook as arguments.
    07_CallTree.xlsm        - Recursion, a ByRef argument changing, and End.
    08_Threads.xlsm         - A thread-safe XLL on several calculation threads, and VBA on one.
    09_XLLPricing.xlsm      - An option book built from XLL functions: text, ranges, arrays and references.
    10_Plasma.xlsm          - A plasma painted two ways, cell by cell and in one call, to read in Perfetto.
    DemoBehaviors64.xll     - A demo add-in: ReverseText, MakeSeries, MightDivide, SafeDivide, ThreadSafeSquare,
                              CallCounter.
    DemoFinance64.xll       - A demo add-in: BlackScholes, PresentValue, CompoundReturn, SlowSum, Fibonacci,
                              NetPresentValue, DiscountCurve, WeightedAverage, RangeSize, QuoteLookup.
  docs/                     - This walkthrough and the other guides, to open in a browser.
  LICENSE                   - The licence: GPL-3.0.
  MANIFEST.txt              - The version, tag, commit and SHA256 of every file here.
  THIRD-PARTY-NOTICES.txt   - The licences of the third-party code in XRayXL.
  XRayXL-Perfetto.html      - Send your trace file to Perfetto.
  XRayXL64.xll              - The add-in.

The two demo add-ins are ordinary XLLs that know nothing of XRayXL. They are what you point the tracer at.

Setting up

1. Load the add-ins. Use File ▸ Open on XRayXL64.xll — in dist\ of a clone, or where you extracted the zip — then on DemoFinance64.xll and DemoBehaviors64.xll in demo\ beside it. Opening an .xll loads it for this Excel session. To load them every time Excel starts, add them through File ▸ Options ▸ Add-ins ▸ Manage: Excel Add-ins ▸ Go ▸ Browse instead.
2. Show the Developer tab if it is hidden: File ▸ Options ▸ Customize Ribbon, and tick Developer. XRayXL's group is on that tab.
3. Open a workbook and enable macros.

The XRayXL group on the Developer tab has six buttons:

Disarm is greyed until a recording is running, and Perfetto until one has finished.

The buttons appear once a workbook is open. Expect your antivirus to take an interest in XRayXL64.xll: it hooks Excel's internals, which is what it is for.

The loop

Every demo is the same four steps:

1. Arm.
2. Do the thing the sheet says: recalculate, edit a cell, or press a button.
3. Disarm.
4. Read the trace. Open Options ▸ Output, right-click Trace file and choose Reveal in File Explorer. It is a CSV, so Excel opens it. Or press Perfetto to see it on a timeline.

To watch rows arrive while you work, press Tail on the ribbon after step 1.

Traces are written to %TEMP%\XRayXL\TraceFiles\, one file per arm, named XRayXL_Trace_<id>_<pid>.csv. XRayXL writes nothing to your workbook: no cells, no VBA, no names.

01 — Your first trace

Try it: Arm, press Ctrl+Alt+F9 to recalculate everything, then Disarm.

Five cells: two VBA functions and three XLL functions from DemoFinance.

The trace has fourteen rows. Here they are with the most useful columns:

seq kind  source span parent depth function      callerref  args                                         ret               ticks
1   entry XLL    1    0      1     BlackScholes  ...!B13    a1:B=100 a2:B=100 a3:B=1 a4:B=0.05 a5:B=0.2
2   exit  XLL    1    0      1     BlackScholes                                                         10.4505835721856    477
3   entry XLL    2    0      1     Fibonacci     ...!B15    a1:B=30
4   exit  XLL    2    0      1     Fibonacci                                                            832040            34952
5   entry VBA    3    0      1     OptionBook    ...!B12    a1:Double=100
6   entry XLL    4    0      1     BlackScholes  ...!B12    a1:B=100 a2:B=100 a3:B=1 a4:B=0.05 a5:B=0.2
7   exit  XLL    4    0      1     BlackScholes                                                         10.4505835721856    162
8   exit  VBA    3    0      1     OptionBook                                                           1045.05835721856   2815
9   entry XLL    5    0      1     SlowSum       ...!B14    a1:B=2 a2:B=3
10  exit  XLL    5    0      1     SlowSum                                                              5                432132
11  entry VBA    6    0      1     RiskWeighted  ...!B11    a1:Double=1000000 a2:Long=3
12  entry VBA    7    6      2     WeightFor     ...!B11    a1:Long=3
13  exit  VBA    7    6      2     WeightFor                                                            1                   243
14  exit  VBA    6    0      1     RiskWeighted                                                         1000000             742

... stands for '[01_FirstTrace.xlsm]First trace'. Your ticks will differ.

Reading a row

Every call writes two rows: an entry when it starts and an exit when it ends. The two share a span number, which is how you pair them.

The full list is in the row model.

What to notice

• Nesting. WeightFor has parent=6 and depth=2: it was called by RiskWeighted, span 6.
• VBA calling an XLL. OptionBook's BlackScholes call (rows 6 and 7) falls between OptionBook's entry and exit, and carries the same callerref, B12. It reads depth=1 and parent=0, because each source counts its own depth: an XLL function is the first XLL call on the stack, whatever VBA is running above it. Its place under OptionBook shows in the order of the rows.
• Where the time went. SlowSum took 432,132 ticks, about 43 ms, more than everything else put together. Fibonacci(30) took about 3.5 ms. The ticks column is where to look first for a slow sheet.
• Order. Rows appear in the order Excel calculated the cells, which is not the order on the sheet.

The Options dialog

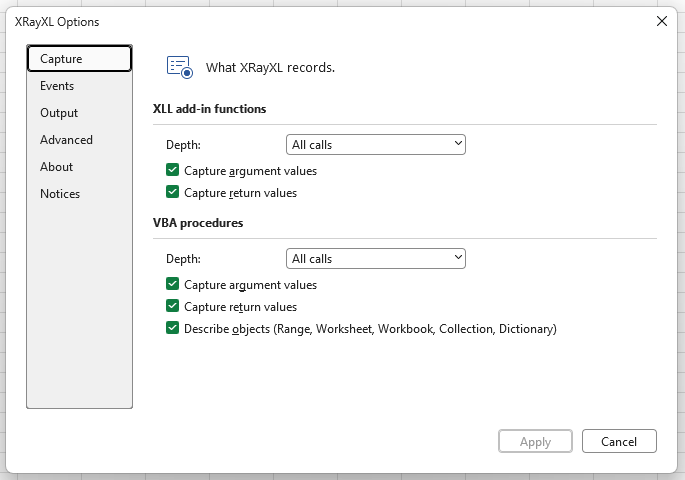

Open Options from the ribbon:

Settings are read when a recording starts, so they are locked while you are armed. Everything is on by default. To get the most accurate timings, turn off argument and return values: capturing them is work done inside the call being timed.

On a timeline

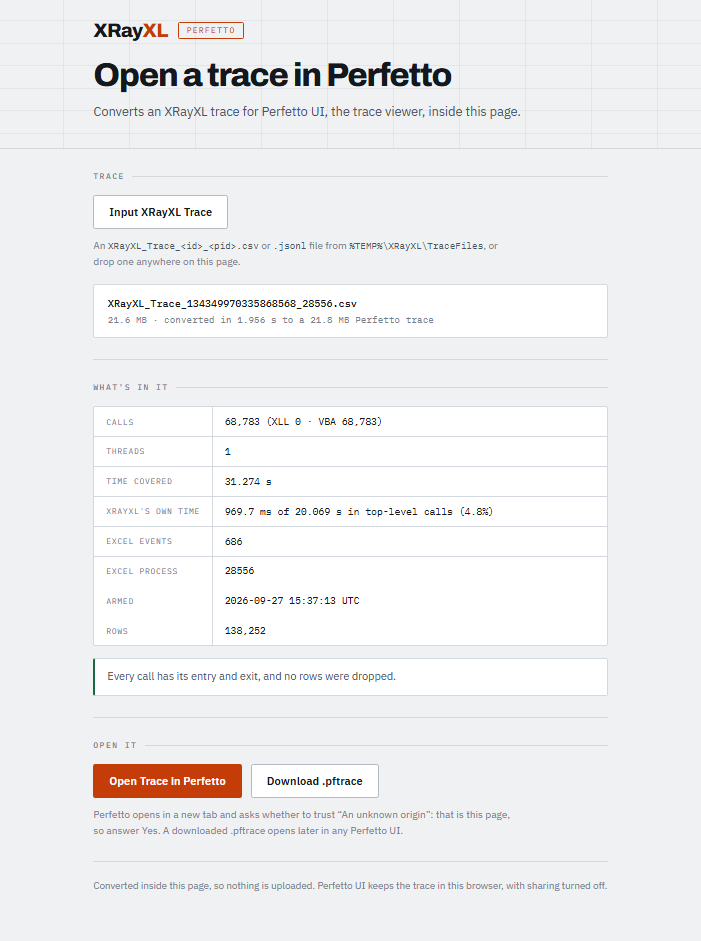

After Disarm, press Perfetto. Your browser opens XRayXL-Perfetto.html, the page that sits beside XRayXL64.xll, and it has already read the trace: it shows how many calls, threads and errors it holds, and anything to watch for, such as dropped rows. Press Open Trace in Perfetto. Perfetto opens in a new tab and asks whether to trust "An unknown origin". That is the page, so answer Yes.

In Perfetto (demo 10 has a picture of it):

• Each thread is a track, and each call is a bar, as long as the call took, under the call that made it. WeightFor sits under RiskWeighted. OptionBook's BlackScholes sits under OptionBook, which the rows could only show by their order.
• Click a bar for its row's details: the arguments, the result, outcome, ticks, and two times worked out from them. XRayXL time is what the tracer itself spent inside the call: reading arguments, asking for the calling cell, writing rows. Own time is the rest, which is what the call would have taken with nothing watching.
• The page's summary adds up XRayXL's time over the top-level calls, so you can see how much the recording cost. It is highest for many small VBA functions with argument and return values on.
• Excel's events, and the arm and disarm, are markers on the thread that raised them.
• Nothing is uploaded. The page converts the trace on your machine, and Perfetto keeps it in your browser, with sharing turned off.

Opened on its own, the same page takes any trace file, CSV or JSON Lines: press Input XRayXL Trace, or drop the file on it. That is also the way for a trace over 256 MB, which the button refuses.

02 — Arguments and values

Try it: Arm, press Ctrl+Alt+F9, then Disarm.

This workbook is about the args and ret columns: how a range, an array or a Variant is written, so that you can read it back.

function     args / ret
CellCount    a1:Variant=Range@0x23E81224570([02_Values.xlsm]Values!B23:D25)=Variant[1..3,1..3]{{1.5,"text",TRUE},{42,#N/A,Empty},{-2.25,"more",46284}}
MixedTypes   ret Variant[0..6]{Integer(1),2.5,Long(3),Currency(1.5000),Date(46284),"text",TRUE}
TimesTable   ret Long[1..3,1..3]{{1,2,3},{2,4,6},{3,6,9}}
Total        a1:Ref&=Double[1..5]{1,4,9,16,25}
MakeSeries   ret Variant[1..1,1..4]{{1,4,9,16}}

The grammar

An array is written as its element type, its bounds, then its values:

Long[1..3,1..3]{{1,2,3},{2,4,6},{3,6,9}}
^    ^         ^
|    |         the values: one brace level per dimension, row 1 first
|    the bounds of each dimension, as declared (1..3, 0..6, ...)
the element type

• A 2-D array is written row by row. {{1,2,3},{2,4,6},{3,6,9}} is row 1, then row 2, then row 3.
• A range reads Range@<address in memory>(<the range's address>)= followed by its cells as a Variant array: CellCount received B23:D25, three rows of three. The blank cell reads Empty, and the #N/A cell reads #N/A.
• Numbers in a Variant. A Double is written bare (2.5). Every other type names itself: Integer(1), Long(3), Currency(1.5000), Date(46284), where 46284 is Excel's serial number for 19 September 2026. Booleans are TRUE/FALSE.
• Text is always in quotes, so a number and text that look alike never read the same: Integer(1) is the number 1 and "1" is the text, #N/A is Excel's error and "#N/A" is text, Empty is an empty Variant and "" an empty string. A quote or a backslash inside the text is escaped as \" or \\, and a character outside plain ASCII as \uNNNN.
• In the file itself the quotes are doubled, because that is how CSV writes a quote inside a field: a1:Variant="1" is stored as "a1:Variant=""1""". Excel, and anything else that reads CSV, shows it as a1:Variant="1".
• In a typed array such as Long[...], the elements are bare, because the header already says what they are.
• An XLL array reads like a VBA one. MakeSeries(4) returned one row of four values, Variant[1..1,1..4].

There is no truncation: every element is written. The one limit is a single value whose text would pass 4 MB. It is written as its header alone, and the log counts it at disarm.

Declared or recognised

Total's argument reads a1:Ref&=..., where you might have expected a1:Double(). SumOfSquares passes its array to Total(ByRef squares() As Double), and the compiled VBA says only "a reference to eight bytes" for that parameter: Ref&. The tracer then recognised the array from its own descriptor, which names its element type (Double) and bounds (1..5).

A type after a1: is declared when VBA's compiled code names it, and recognised when the tracer worked it out from the value itself, under strict checks. Most of the time XRayXL finds a parameter's type: every argument in demo 05's recalculation has one. A ? marks the rare one it could not. How XRayXL knows a VBA argument's type explains each form.

03 — Who called it

Try it: Arm, then in turn:

1. Press Ctrl+Alt+F9.
2. Type a number into the blue Trigger cell.
3. Press Run a macro.
4. Press Start a timer and wait a second.

Then Disarm.

The caller and callerref columns say what started each call:

function          caller  callerref                          parent depth
ThreeOf           cell    [03_Callers.xlsm]Callers!B12:D12   0      1
Twice             cell    [03_Callers.xlsm]Callers!B11       0      1
CallCounter       cell    [03_Callers.xlsm]Callers!B13       0      1     <- the recalculation
CallCounter       cell    [03_Callers.xlsm]Callers!B13       0      1     <- again, after the edit
Worksheet_Change  none    ref                                0      1
  Helper          none    ref                                5      2
FromTheButton     name    RunAMacro                          0      1
  Helper          name    RunAMacro                          7      2
StartTimer        name    StartATimer                        0      1
TimerTick         none    ref                                0      1
  Helper          none    ref                                10     2

What to notice:

• The array formula {=ThreeOf(5)} over B12:D12 runs once, and its caller is the whole range.
• CallCounter is volatile, so it runs whenever anything recalculates. Editing the Trigger cell caused the second call, and nothing it depends on changed.
• Worksheet_Change is VBA run by an event, not by a calculation. Its argument shows the cell you edited: a1:Object=Range@...([03_Callers.xlsm]Callers!B14)=5.
• The timer. StartTimer ran from the button, and TimerTick ran a second later, run by Excel itself with no button and no cell behind it. The trace records both, as separate top-level calls.
• Helper is the same procedure called from three places. Its parent says which one called it each time, and its a1:String argument says so too.

Excel's own events

Between the calls, the trace also records the events Excel raises, one event row each. These are the rows from the recalculation and the edit, with the first calls left out:

seq kind  source function          callerref                      args
1   event XRayXL arm                                             qpcFrequency=10000000 utc="2026-09-27T10:04:45.5364303Z" pid=5976 XLL_DEPTH="ALL" ...
6   entry XLL    CallCounter       ...!B13
7   exit  XLL    CallCounter
8   event Excel  SheetCalculate    [03_Callers.xlsm]Callers       Sh:Object=Worksheet@0x27B83E35C80([03_Callers.xlsm]Callers)
9   event Excel  AfterCalculate
10  entry XLL    CallCounter       ...!B13                        <- the edit's recalculation
11  exit  XLL    CallCounter
12  event Excel  SheetCalculate    [03_Callers.xlsm]Callers       Sh:Object=Worksheet@0x27B83E35C80(...)
13  event Excel  AfterCalculate
14  entry VBA    Worksheet_Change  ref                            a1:Object=Range@0x27B83E34FB0([03_Callers.xlsm]Callers!B14)=7
15  entry VBA    Helper            ref                            a1:String="change event"
16  exit  VBA    Helper
17  exit  VBA    Worksheet_Change
18  event Excel  SheetChange       [03_Callers.xlsm]Callers!B14   Sh:Object=Worksheet@0x27B83E35C80(...) Target:Range=Range@0x27B83E34FB0([03_Callers.xlsm]Callers!B14)=7
19  event XRayXL disarm                                          rowsDropped=0 pauses=0 ... eventsRecorded=5 eventsLost=0

• An event is not a call. It has one row, not two, and its span, parent and depth are 0. callerref is the most specific place it names: the sheet for SheetCalculate, the edited cell for SheetChange. args names each parameter, and Target carries the new value, 7.
• The order is Excel's. Typing into B14 reads SheetCalculate, AfterCalculate, and only then the change: Excel recalculates before it tells anyone a cell changed. The sheet's own Worksheet_Change handler runs before the application hears of it, so its rows come before SheetChange. Both saw the same Range, at the same address.
• Arm and disarm are events too. The arm row lists every setting in force, and the disarm row the session's totals.
• Which events is the Events page in Options. The default, Calc, is these three and the other calculation events, such as a table or PivotTable updating. Selection is where you are and what you click: SheetSelectionChange, activating a sheet, workbook or window, double- and right-clicks, and following a hyperlink. All records everything Excel's Application object raises. Events that fire often are marked ⚡.

In Perfetto, events are markers on the thread that raised them, among the calls.

04 — Errors and how calls end

Try it: Arm, press Ctrl+Alt+F9, press Run the error chain, then Disarm.

The outcome column says how each call ended: returned, threw, unwound, handled, unhandled or abandoned. ErrorsInTheTrace.md explains each one, and the cases where VBA stops at its error dialog instead of passing an error on.

An error passed up a chain

Run the error chain runs Outer, which calls Middle, which calls Thrower. Thrower raises an error, Middle does not catch it, and Outer does:

function       span parent depth ret  outcome   trust
RunErrorChain  9    0      1          returned  exit
  Outer        10   9      2          handled   exit
    Middle     11   10     3          unwound   backstop
      Thrower  12   11     4          threw     backstop

(Exit rows, reordered to show the chain.) Read it from the bottom up:

• threw: the error was raised here and left this procedure.
• unwound: the error passed through, and nothing here caught it.
• handled: an error from below was caught here, and this procedure carried on.

trust=backstop means the procedure left without running its normal exit, so the tracer closed it at the next thing it saw. The ticks on such a row is an upper bound, not an exact reading.

Errors in worksheet functions

function     args                             ret      outcome
SafeRatio    a1:Double=1 a2:Double=0          "n/a"    handled
  Divide     a1:Double=1 a2:Double=0                   threw
RawRatio     a1:Double=1 a2:Double=0                   unhandled
  Divide     a1:Double=1 a2:Double=0                   threw
CodeFor      a1:String="GBP"                  #N/A     returned
Scaled       a1:Double=10 a2:Variant=Missing  10       returned
MightDivide  a1:B=10 a2:B=0                   #DIV/0!  returned
SafeDivide   a1:B=10 a2:B=0                   0        returned

• handled or unhandled. SafeRatio has an On Error handler, so it reads handled and returns "n/a". RawRatio has none. The error leaves VBA into the cell, Excel shows #VALUE!, and the function reads unhandled. In both cases Divide reads threw, so you can see where the error started.
• An error value is not an error. CodeFor("GBP") returns CVErr(xlErrNA). Nothing was raised, so it reads returned, with #N/A in ret. An XLL returning #DIV/0! is the same.
• Missing. Scaled(10) leaves out its Optional second argument, and the trace says so: a2:Variant=Missing.

05 — A real model: VBACurves

05_VBACurves.xlsm is a working VBA model rather than a demo sheet: a USD SOFR curve bootstrapped from deposits, futures and swaps on Market Data, and zero rates, forward rates and a chart on Curve Analytics. It is one module of ordinary VBA, with no add-in calls.

Try it: Arm, press Ctrl+Alt+F9, then Disarm.

One full recalculation is about 5,350 calls: 10,710 rows, 3.3 MB of CSV. The busiest functions:

calls  function
  973  InterpDF
  969  CurveDF
  852  Demo_AddMonths
  776  Demo_YearFrac
  776  Demo_BasisCode
  224  HandleToIndex

Finding your way around

• Filter on depth=1 to see just the cells. Each is a worksheet function Excel called, and everything beneath it is what that function did.

• Follow a span. The whole curve is built by one cell, Market Data!B72:

  span parent depth function         ret
  531  0      1     Demo_BuildCurve  "CRV:USD-SOFR-OIS:1"   (ticks 175524, about 18 ms)
  532  531    2       LoadInstruments
  533  531    2       BootstrapCash
  539  531    2       BootstrapFutures
  540  539    3         InterpDF
  548  531    2       BootstrapSwaps
  609  531    2       FindCurve


  Filter parent on 531 to see its direct calls.

• A range, row by row. Demo_BuildCurve's fourth argument is the instrument table:

  a4:Object=Range@0x28487BFC100('[05_VBACurves.xlsm]Market Data'!A50:G69)=Variant[1..20,1..7]{{"DEPO","ON",46280,46281,0.00277777777777778,0.03865,"Y"},{"DEPO","1W",...


  LoadInstruments passes it on and hands back the rows marked Y through a ByRef argument. Its exit row shows that argument changing, a2:Variant&=Variant[1..20,1..6]{...}. An exit row carries args only for a ByRef argument that changed.

The same trace as JSON Lines

Open Options ▸ Output, set Format to JSON Lines, then Arm, recalculate and Disarm again. The file is now XRayXL_Trace_<id>_<pid>.jsonl, one JSON object per line, with the same fields as the CSV columns:

{"seq":1,"input":1,"kind":"entry","source":"VBA","span":1,"parent":0,"depth":1,"thread":49172,"qpc":3981638123735,"module":"[05_VBACurves.xlsm]Module1","function":"Demo_TenorNum","proc":"0x18A81C414BC","typetext":"String","caller":"cell","callerref":"'[05_VBACurves.xlsm]Market Data'!C25","argcount":1,"args":[{"slot":1,"type":"String","value":{"t":"String","v":"6M"}}]}
{"seq":4,"input":4,"kind":"exit","source":"VBA","span":1,"parent":0,"depth":1,"thread":49172,"qpc":3981638124839,"module":"[05_VBACurves.xlsm]Module1","function":"Demo_TenorNum","proc":"0x18A81C414BC","ret":{"t":"Long","v":6},"rettype":"Long","outcome":"returned","ticks":1104,"trust":"exit"}

Every value is structured and names its type, including a Double. An array keeps its element type and bounds, and its values are nested one list per dimension:

{"slot":1,"type":"Ref&","value":{"t":"Array","elem":"Double","bounds":[[0,400]],"v":[0,0.0191780821917808,0.0876712328767123,...]}}

That makes JSON Lines the format to choose when a program will read the trace. The price is size: this recalculation is 5.8 MB as JSON Lines, against 3.3 MB of CSV. JSON Lines has the full schema. Set the format back to CSV when you are done.

06 — Objects and classes

Try it: Arm, press Ctrl+Alt+F9, press Describe the objects, then Disarm.

PositionValue(100,2.5) creates a Position from a class module, sets its quantity, values it and lets it go. Every class member is a call of its own:

span parent depth module                      function          args            ret
1    0      1     [06_Objects.xlsm]Objects    PositionValue     a1:Double=100 a2:Double=2.5
2    1      2     [06_Objects.xlsm]Position   Class_Initialize
3    1      2     [06_Objects.xlsm]Position   Qty               a1:Double=100
4    1      2     [06_Objects.xlsm]Position   Value             a1:Double=2.5   250
     ...PositionValue's exit row, ret 250...
5    0      1     [06_Objects.xlsm]Position   Class_Terminate

• New runs Class_Initialize inside the procedure that said New: parent=1.
• A property is a call. p.Qty = units is the Property Let Qty, with its value as a1.
• Class_Terminate comes after PositionValue's exit row, at depth 1. VBA releases the object once the function has finished, so the destructor is not nested under it.

Excel objects as arguments. With Describe objects on (Options ▸ Capture, the default), an object argument is named and, for a Range, Worksheet, Workbook, Collection or Dictionary, described:

RangeInfo      a1:Object=Range@0x228072FDBE0([06_Objects.xlsm]Objects!B17:C18)=Variant[1..2,1..2]{{1.5,"a"},{2.5,"b"}}
Describe       a1:Object=Worksheet@0x2280464D740([06_Objects.xlsm]Objects)
Describe       a1:Object=Workbook@0x2280464A040([06_Objects.xlsm])
Describe       a1:Object=Collection@0x2281D2B2EF0=Variant[1..2]{"a",Long(2)}
FirstDataCell  ret Range@0x228072FBD20([06_Objects.xlsm]Objects!B17)=1.5

The class comes from the object itself, so a parameter declared As Object still reads Worksheet. A Range shows its address and then its cells, and a single cell is a plain value. A Collection shows its items as a 1-D array; a Dictionary would show one {key,item} row per entry, as a 2-D array. The address after @ lets you follow one object from row to row. Turning Describe objects off leaves only object@0x…, which also stops the tracer asking Excel anything during the call.

07 — The call tree

Try it: Arm, press Ctrl+Alt+F9, press Stop everything, then Disarm.

Recursion. Factorial(5) calls itself four times. Each call gets its own span, and parent points to the call above it:

span parent depth args        ret
12   0      1     a1:Long=5   120
13   12     2     a1:Long=4   24
14   13     3     a1:Long=3   6
15   14     4     a1:Long=2   2
16   15     5     a1:Long=1   1

Branching. VbaFib(4) makes nine calls. Two of them run at depth 3 with different parents, so depth alone cannot tell you which call made which, but parent can:

span parent depth args
3    0      1     a1:Long=4
4    3      2     a1:Long=3
5    4      3     a1:Long=2
6    5      4     a1:Long=1
7    5      4     a1:Long=0
8    4      3     a1:Long=1
9    3      2     a1:Long=2
10   9      3     a1:Long=1
11   9      3     a1:Long=0

A ByRef argument that changed. Clamped(150) passes a variable ByRef to ClampInPlace, which caps it at 100. The exit row carries the argument again, because it changed:

kind  function      args
entry ClampInPlace  a1:Double&=150 a2:Double=0 a3:Double=100
exit  ClampInPlace  a1:Double&=100

Double& means "a Double, passed by reference". Clamped(50) makes the same call, and its exit row has no args, because nothing changed. An exit row only lists ByRef arguments that moved.

End. Stop everything runs StopEverything → Level1 → Level2, which says End. All VBA stops at once and no procedure returns, so all three read outcome abandoned, trust end.

08 — Threads

Try it: Check that File ▸ Options ▸ Advanced ▸ Formulas ▸ Enable multi-threaded calculation is ticked. Then Arm, press Ctrl+Alt+F9, and Disarm.

Columns D and E each hold 500 formulas. ThreadSafeSquare is registered thread-safe (rettype Q$, the $), so Excel spreads it across its calculation threads. VbaSquare is VBA, which Excel always runs on its main thread. Counting entry rows by thread:

calls  function          thread
  43   ThreadSafeSquare  36940
  43   ThreadSafeSquare  57248
  ...  ten more threads, 31 to 44 calls each
 500   VbaSquare         57008
   1   ReverseText       57008

That was twelve threads, the setting on this machine. ReverseText is not thread-safe, so it ran on the main thread with the VBA. It also shows an XLL string going both ways: typetext C%, a1:C%="hello", ret "olleh".

On a multi-threaded recalculation, rows from different threads interleave in the file. The thread column separates them, and span still pairs each entry with its exit.

09 — An option book, all XLL

Try it: Arm, press Ctrl+Alt+F9, then Disarm.

A small priced portfolio with no VBA at all: quotes, ten option positions, portfolio figures, a discount curve and a price grid. It is 45 XLL calls, and each argument type reads differently:

What to notice:

• The call that isn't there. Row 29's ticker, ZZZZ, is not quoted, so QuoteLookup returns #N/A. Excel then never calls BlackScholes for that row, because its argument is an error. You get 29 BlackScholes calls, not 30, and none has callerref …!G29. The trace records what Excel did, not what the sheet might suggest.
• Calculation order. A position's BlackScholes usually comes straight after its QuoteLookup, with the grid's independent cells slotted in between. WeightedAverage, which needs every price, comes last.
• A nested formula is two calls, one after the other. B35 holds =PresentValue(CompoundReturn(1000,0.07,10),Rate,10). Both calls read depth 1 and callerref …!B35. CompoundReturn finishes, returning 1967.15135728957, before PresentValue starts and receives that number as a1. Excel works out the inner function first, so the two never nest.
• Every XLL exit reads returned, the #N/A one included. A returned error value is a result, as in demo 04.

10 — A plasma, painted two ways

Try it: Arm, press Start the show and watch for 20 seconds, then Disarm and press Perfetto.

Every cell on this sheet is 10 pixels square, and the 96 × 54 block in the middle is a canvas. The show draws a plasma on it, four sine waves added together with the colours cycling, for two acts of ten seconds each, with a countdown at the top left:

• Act 1 colours each cell with its own call to Excel, Interior.Color, 5,184 calls a frame. You can watch each frame sweep down the canvas.
• Act 2 writes all 5,184 values in one call, Range.Value2 = field, and the canvas's colour scale does the colouring.

The maths is the same in both acts, and so are the cells. On the traced run in Perfetto below, act 1 drew 4 frames in its ten seconds, the last cut short when time ran out, and act 2 drew 245, fewer than the 287 above because the tracer was recording every call: about 2.5 seconds a frame against 40 milliseconds. Each call across to Excel costs far more than the VBA around it, and act 1 makes 5,184 of them a frame where act 2 makes one.

In Perfetto

Here 1.75 seconds of act 1 is selected, and the Pivot Table below sums it by name: 3,002 SetPixel calls took 1.5 seconds between them, and the colour maths inside them, Palette with Mix beneath it, 72 milliseconds of that. The rest is Excel colouring cells.

• StartShow spans the whole show, with one RunAct under it for each act.
• Act 1's frames are wide. Each is a sliver of ComputeField, its 54 PlasmaRow calls, then PaintOneCellAtATime: a dense comb of SetPixel calls, each with Palette and Mix beneath it. Zoom into one SetPixel and click it: most of its time is its own, spent in Excel colouring one cell.
• Act 2's frames are thin and close together: ComputeField, then one PaintInOneCall.
• Drag across a second of each act, as above, and compare the two Pivot Tables.
• Excel's events are markers on the same track: a SheetChange for each write to the sheet, and the AfterCalculate that follows it.
• What tracing cost. The page's summary adds up XRayXL's own time. On the run above it was 7.6% of act 1, whose many small calls each carry the tracer's cost, and 2.1% of act 2. The trace was 21.6 MB, most of it act 1's 17,760 calls each to SetPixel, Palette and Mix.

More

• Tracing one part of your code. The buttons are how you will normally arm and disarm. Reach for the commands instead when the thing you want to trace is buried inside a longer run and pressing a button cannot catch it — wrap that part and nothing else:

  Application.Run "XRayXL_Arm"
  RepriceTheBook                    ' the only thing in the trace
  Application.Run "XRayXL_Disarm"


  Every button is a registered command, so the same goes for the settings: Application.Run "XRayXL_SetTraceParam", "FORMAT", "JSONL". See Trace options.

• The log. %TEMP%\XRayXL\Logs\XRayXL_<pid>.log records each arm and disarm, the trace file's name, and totals. Options ▸ Advanced names it.

• Crash report. If Excel crashes with XRayXL loaded, a short text report, Logs\XRayXL_crash_<pid>.txt, records registers and module names. It contains no workbook content.
